    The Hamlin School

    Status

    Completed, 2022

    Size

    47,500 sf

    Client

    The Hamlin School

    Scope

    Master Planning, Programming, Concept Design, Schematic Design, Design Development, Construction Documentation, Construction Administration

    Project Team

    Mark Cavagnero
    Felicia Dunham
    Anna de Anguera
    Christopher Agosta
    Laura Blake
    Tanita Choudhury
    Paul Davison
    Tammy LePham
    Olga Luebker
    Ricardo Moreno
    Ashley Morgan
    Joan Young Park

    Project Collaborators

    General Contractor: Herrero Builders
    Owner’s Representative: Pacific Union Development Company
    Geotechnical: Treadwell & Rollo
    Structural: Murphy Burr Curry
    Mechanical & Plumbing: Costa Engineers
    Electrical: O’Mahoney & Myer
    Lighting: Auerbach Glasgow
    Telecom/AV/Security: TEECOM
    Acoustics: Salter
    Theater/Performing Arts: Auerbach Pollock Friedlander
    Kitchen: The Marshall Associates / Food and Laundry Service Consultants
    Elevator: Syska Hennessy Group
    Waterproofing: Wiss, Janney, Elstner Associates
    Specifications: Emily Borland Specifications
    Code: REAX Engineering
    Preservation: Carey & Co. Inc.
    Cost Estimating: TBD Consultants
    Materials Testing: Applied Materials & Engineering
    Landscape Architecture: Shades of Green
    Architectural Photography: Mike Kelley

    Description

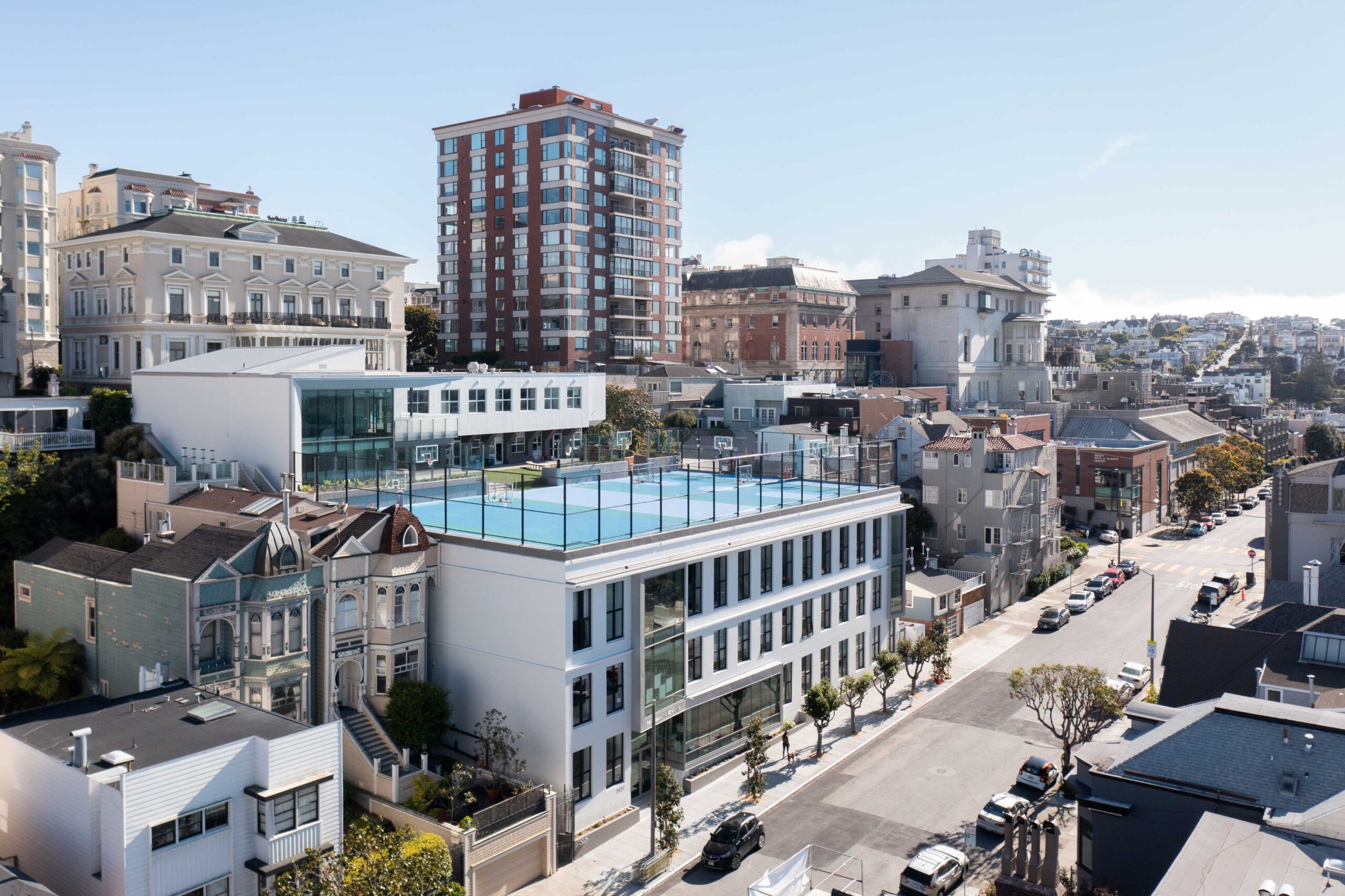

    Mark Cavagnero Associates provided master plan and full design services for The Hamlin School, a private K-8 girls' school in San Francisco. The campus is located on a steep Pacific Heights site in 3 buildings (McKinne Hall, the Middle Building, and Stanwood Hall) that step down the hill. The renovation and expansion project set out to prioritize the school's objectives of project-based learning and STEAM curriculum. This was achieved by enlarging classrooms, connecting the lower and upper school science rooms, expanding the gymnasium to meet athletic size regulations, creating a separate multipurpose room for performing arts, and simplifying the overall campus circulation to better unite the buildings and the community.

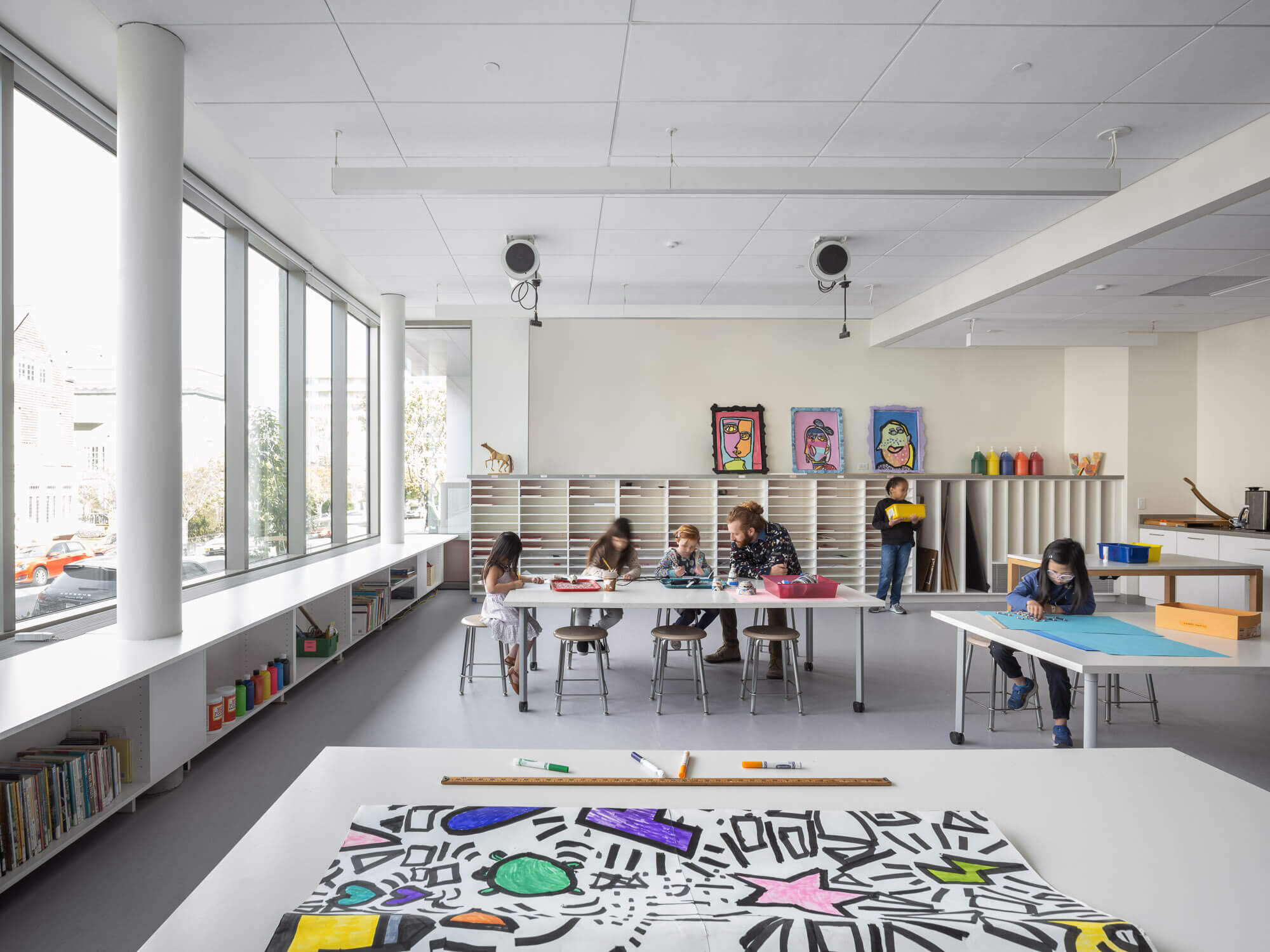

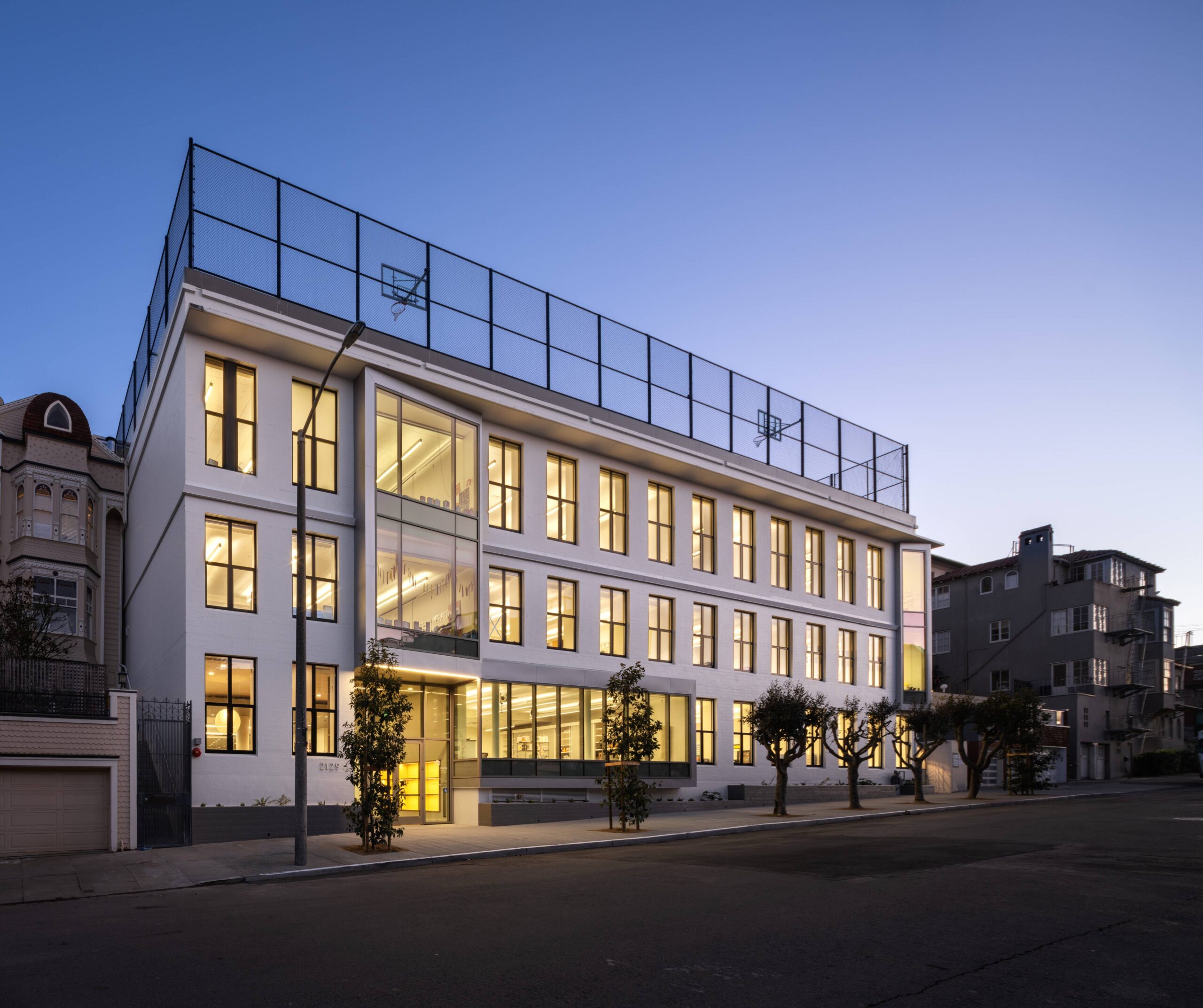

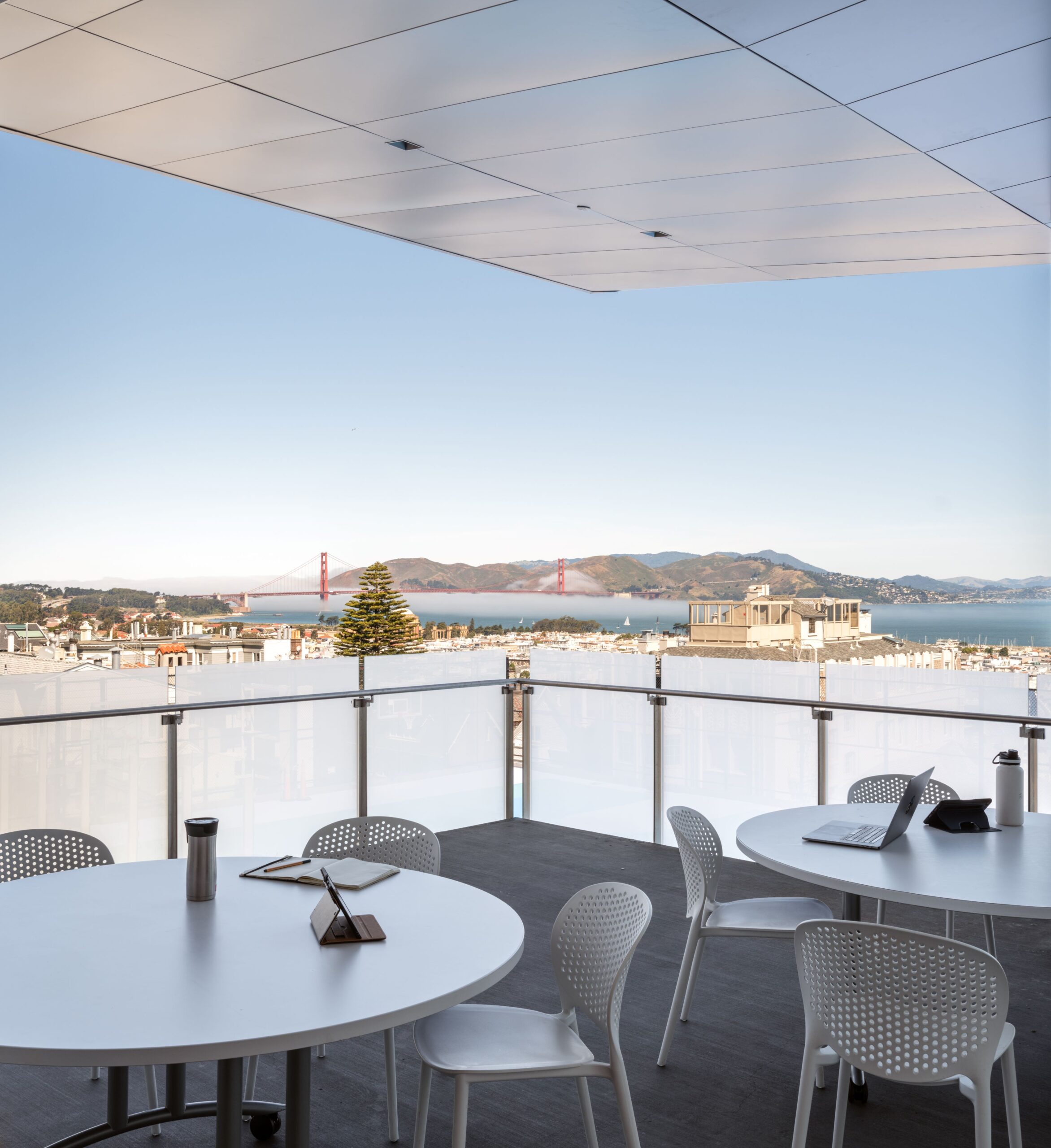

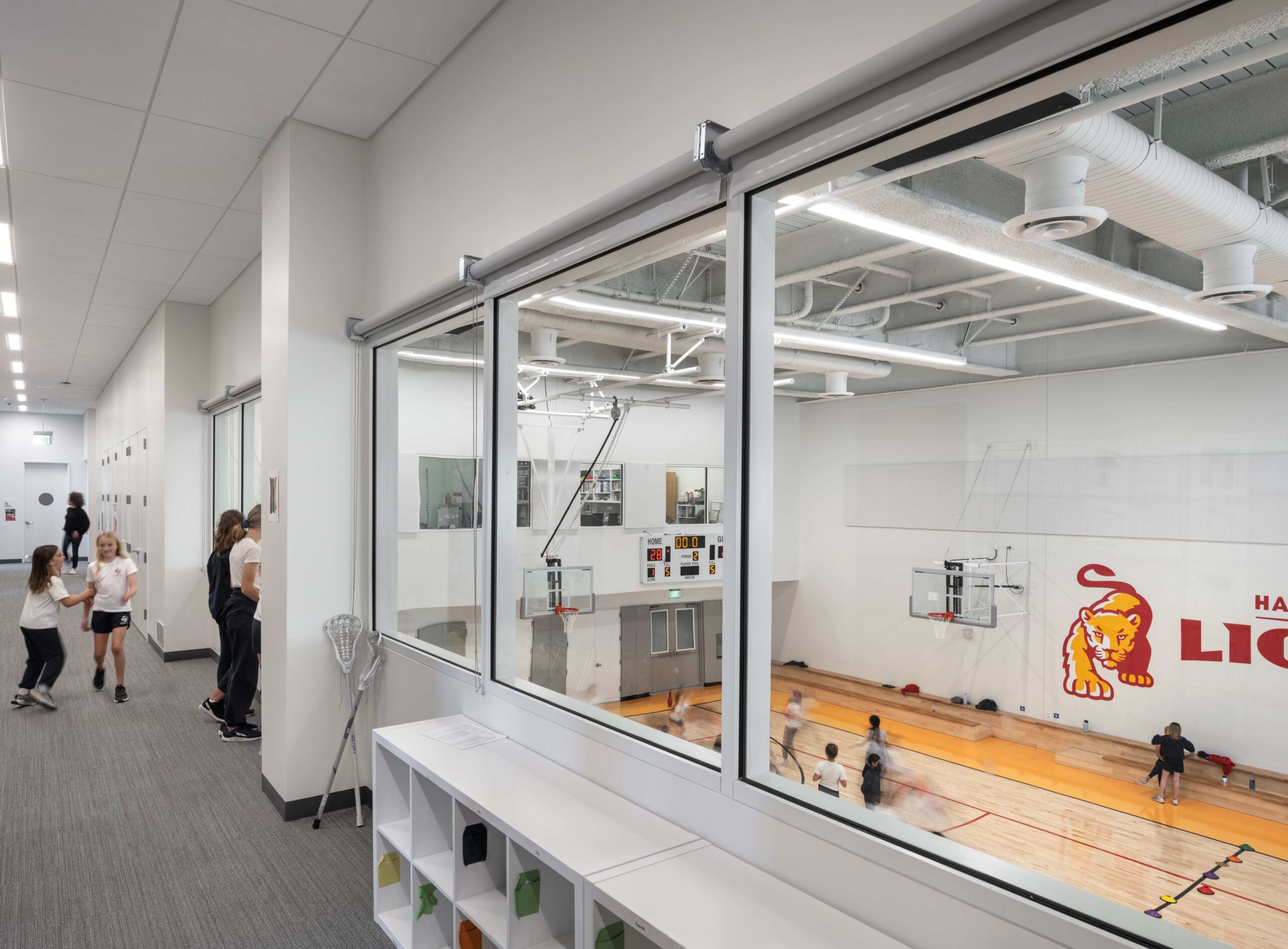

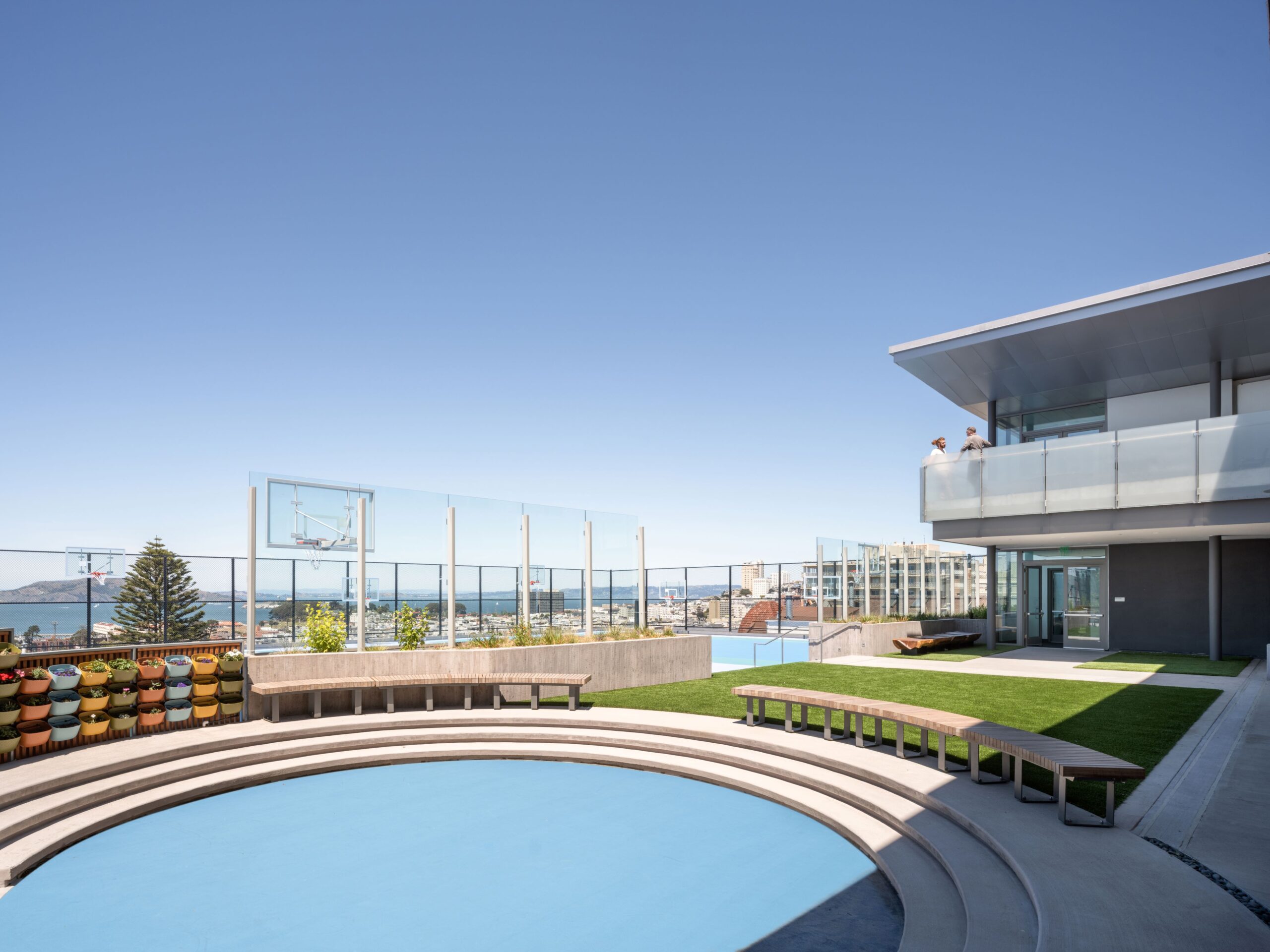

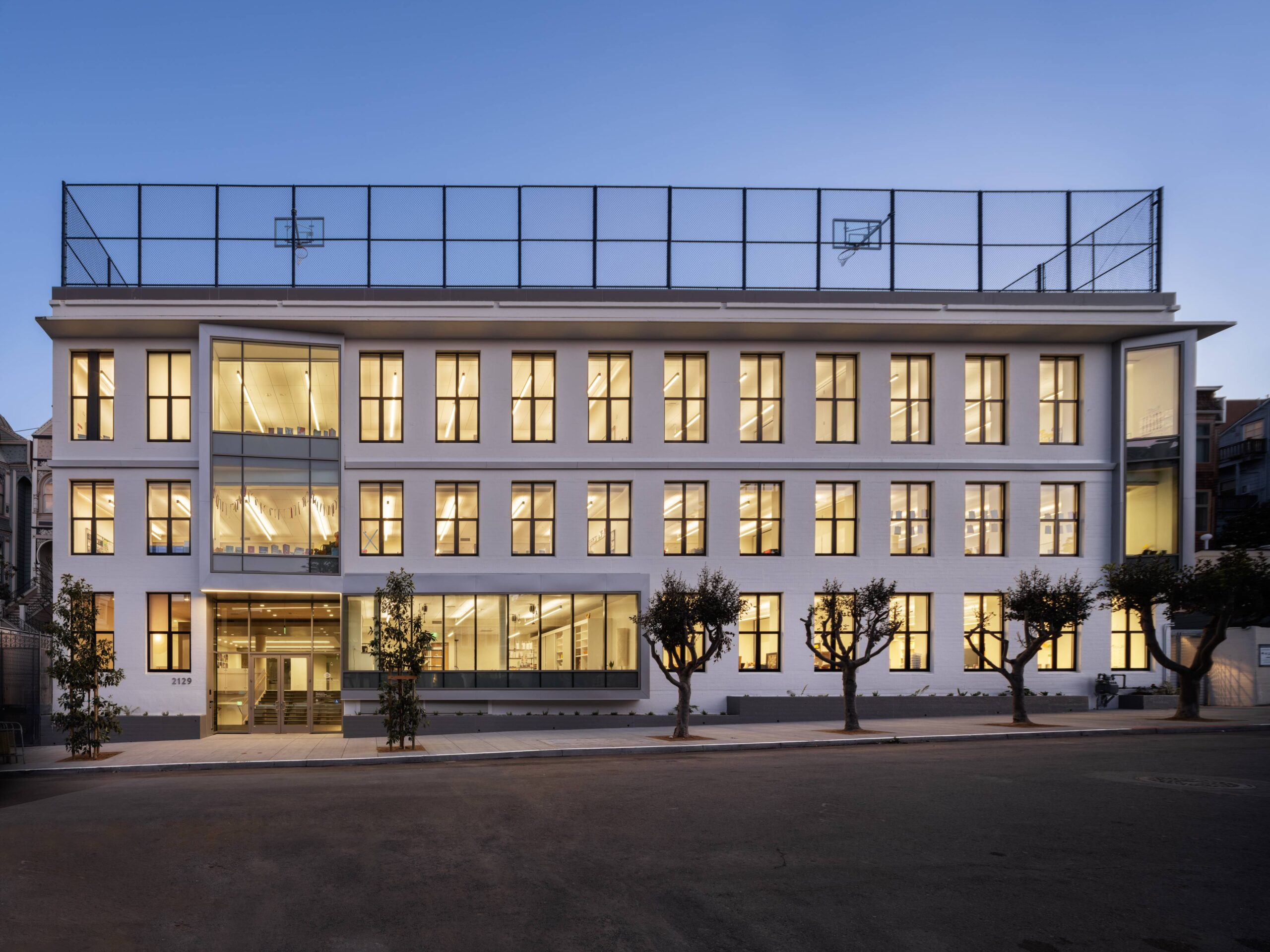

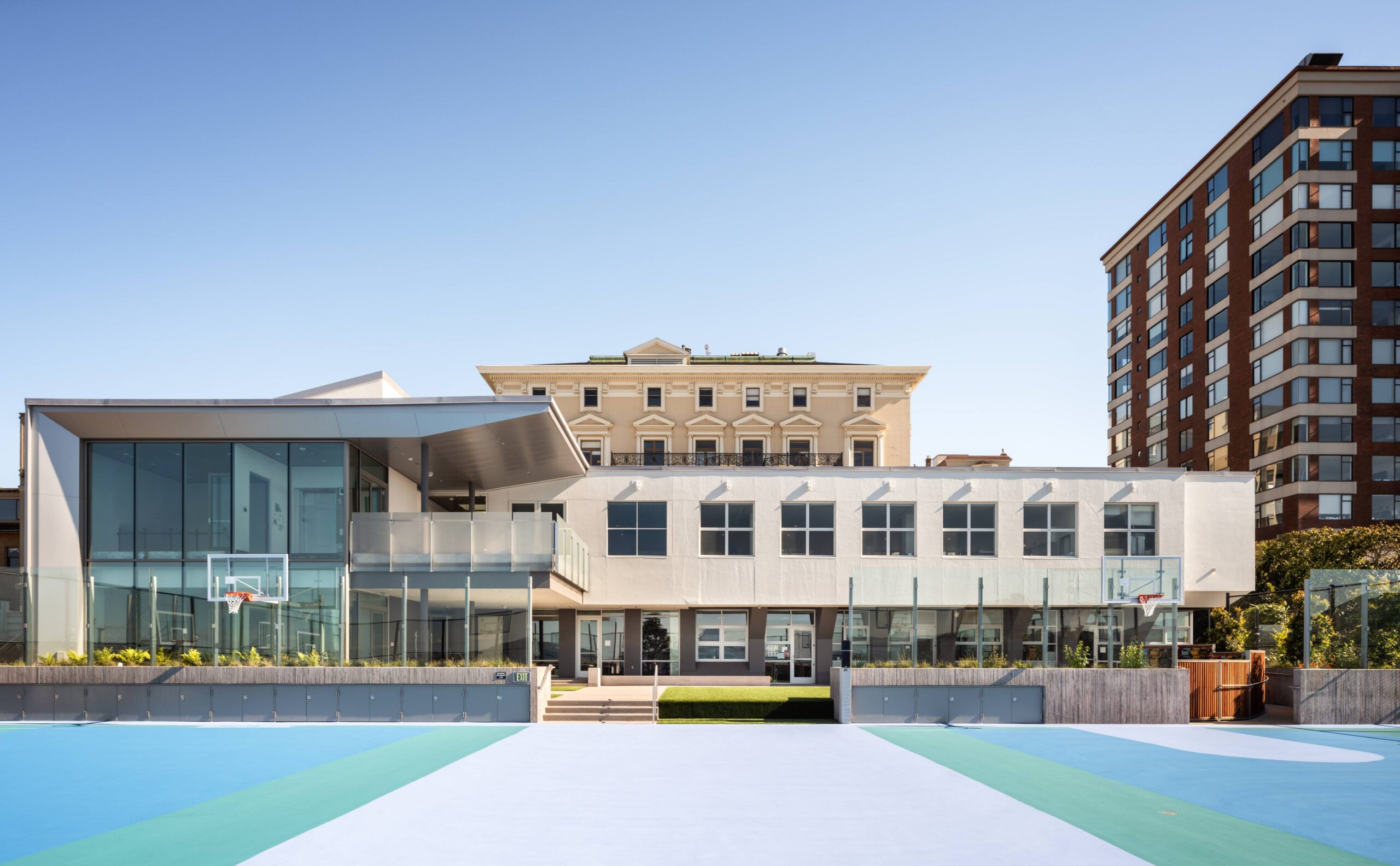

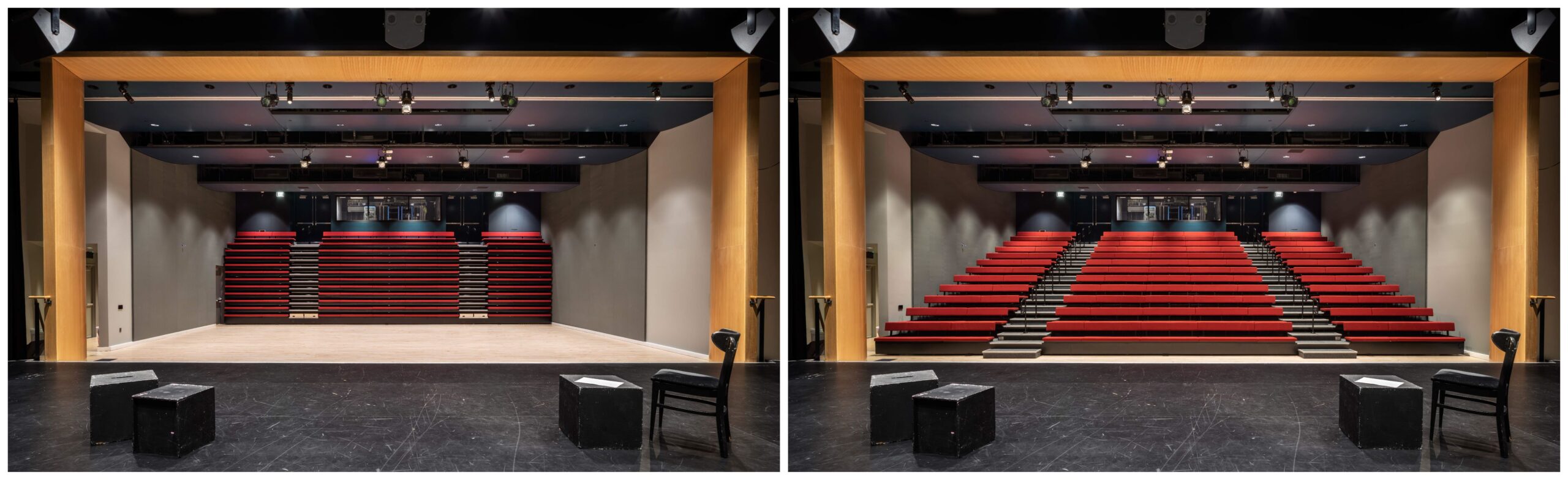

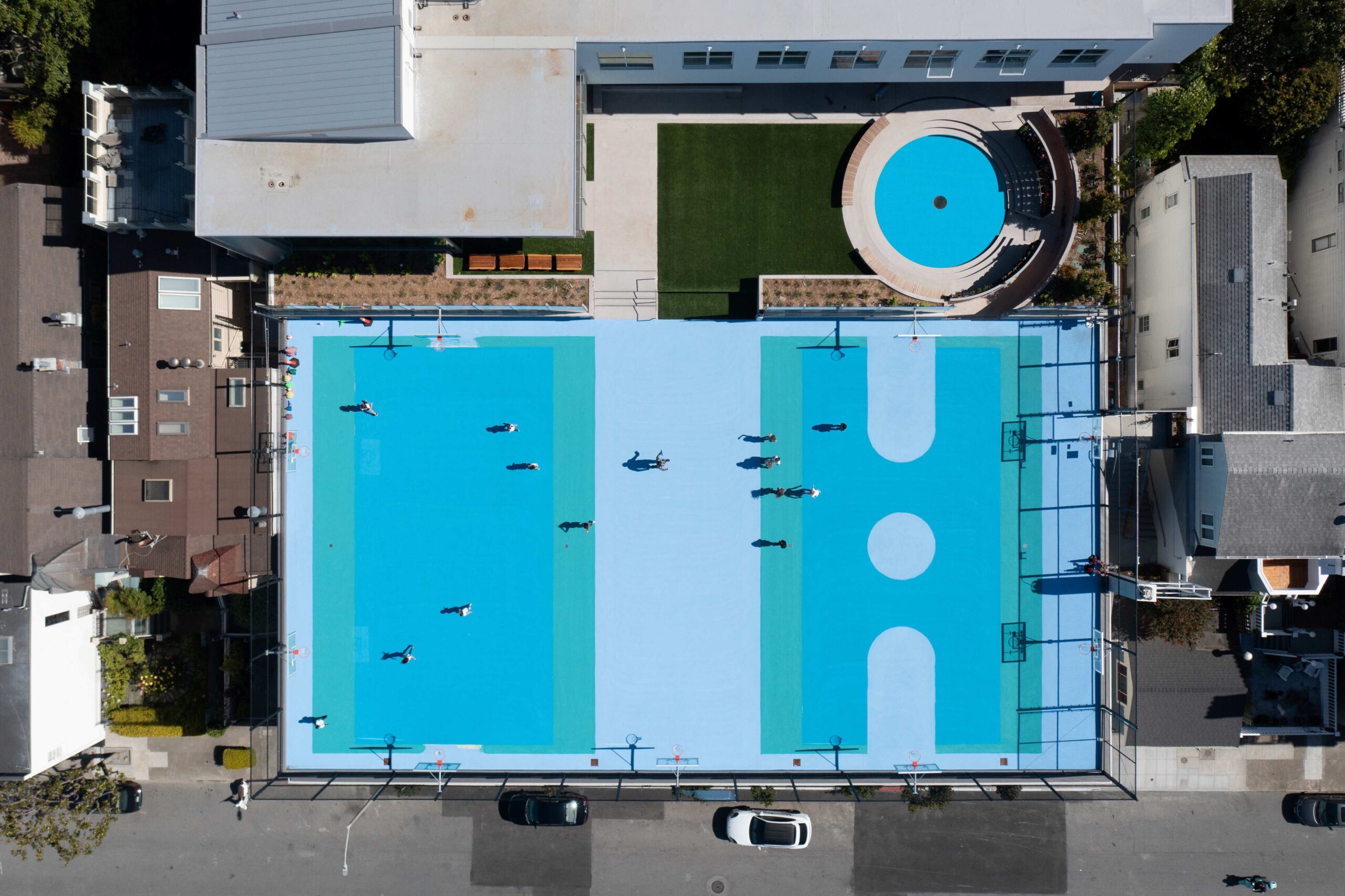

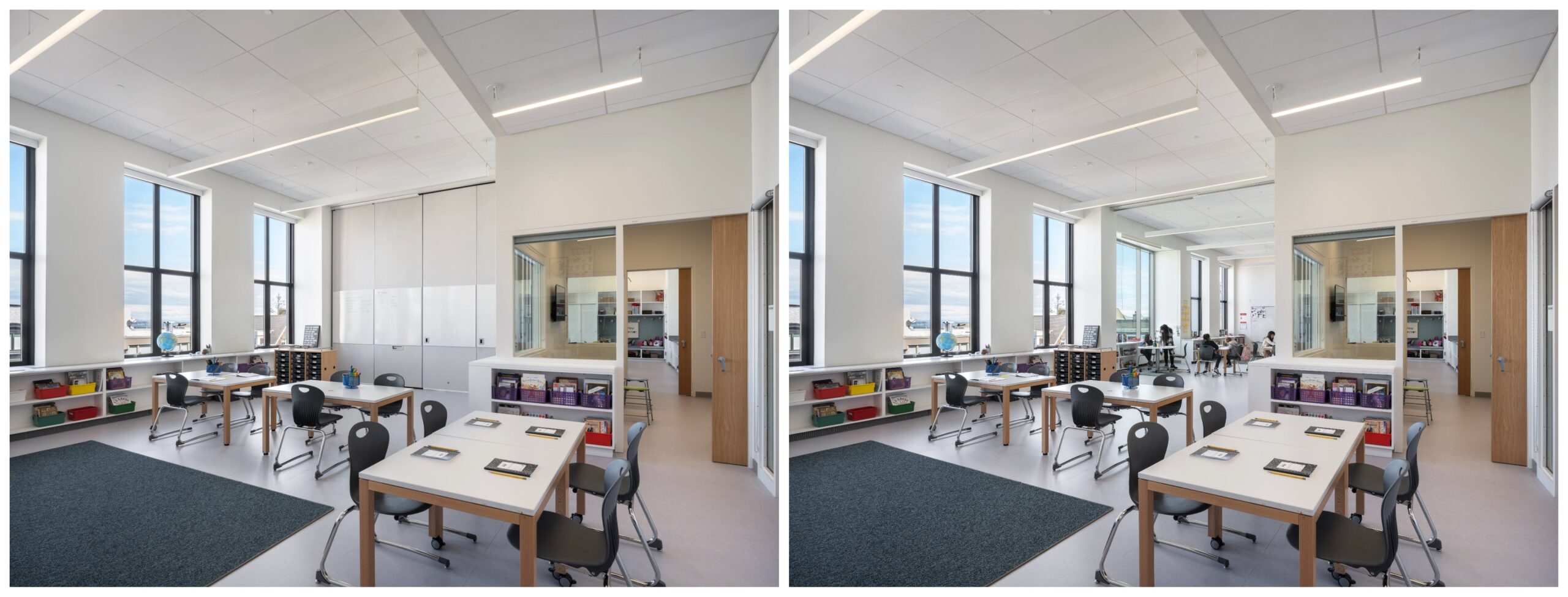

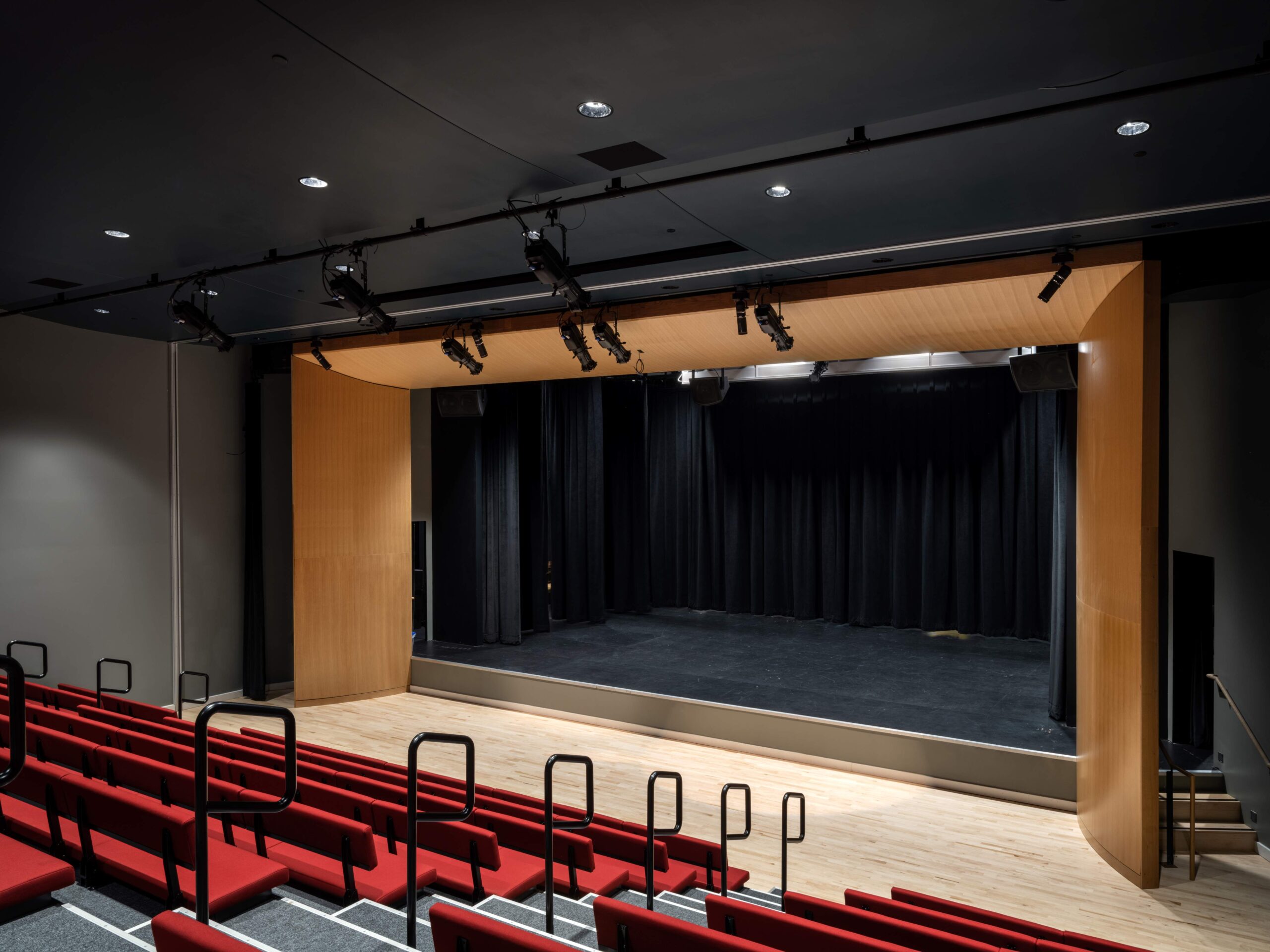

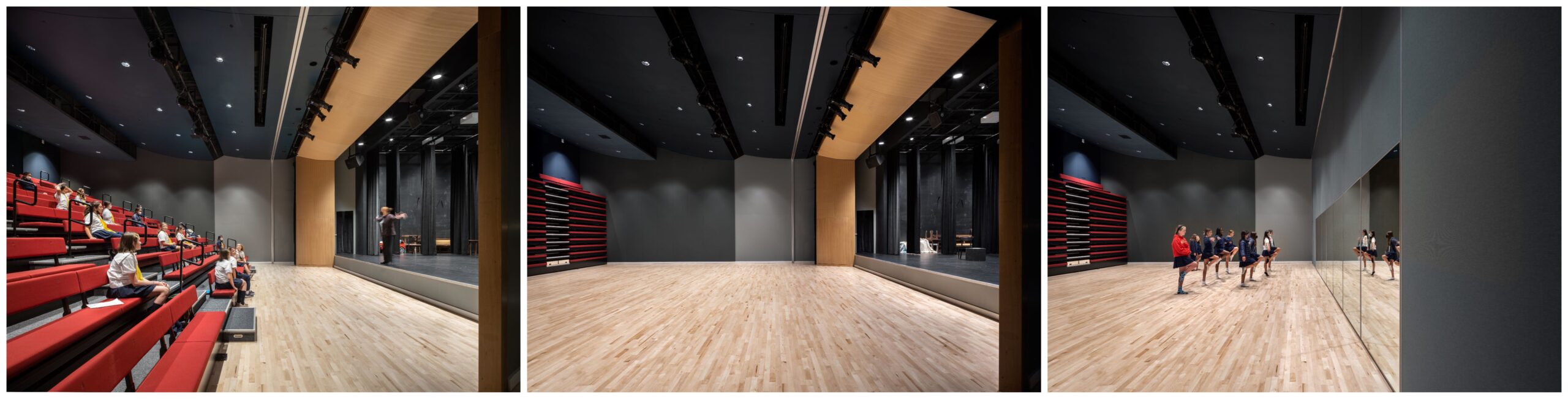

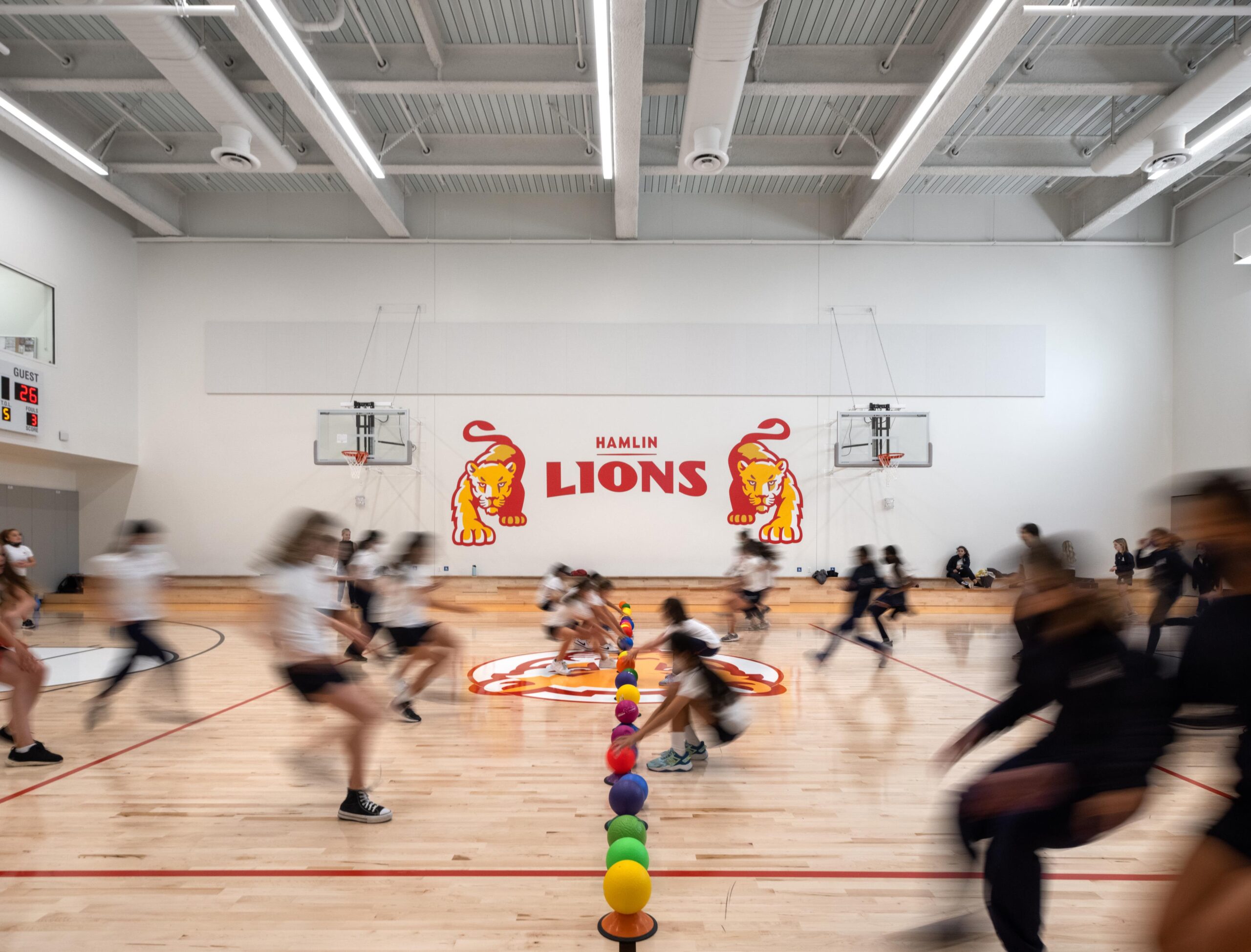

    McKinne Hall, a 3-story 1960's concrete building, underwent a full renovation including seismic, mechanical, electrical, and plumbing upgrades. The building was extended to meet an existing retaining wall and excavated down a level below the first floor, creating space for a new larger and taller gymnasium to meet middle school regulation dimensions and a flexible multipurpose space prioritized for the performing arts program. The existing retaining wall was tied back to the hillside and underpinned as required for the new expansion. Retractable seating and theatrical equipment are provided in the multipurpose room to accommodate assembly and performance functions. All existing classrooms were reconfigured, enlarged, and fully renovated. A new terrace on the roof of the new gymnasium directly adjacent to the science rooms, provide a large central space primarily for use as an outdoor science lab with space for messy experiments but can also accommodate play and gathering uses.

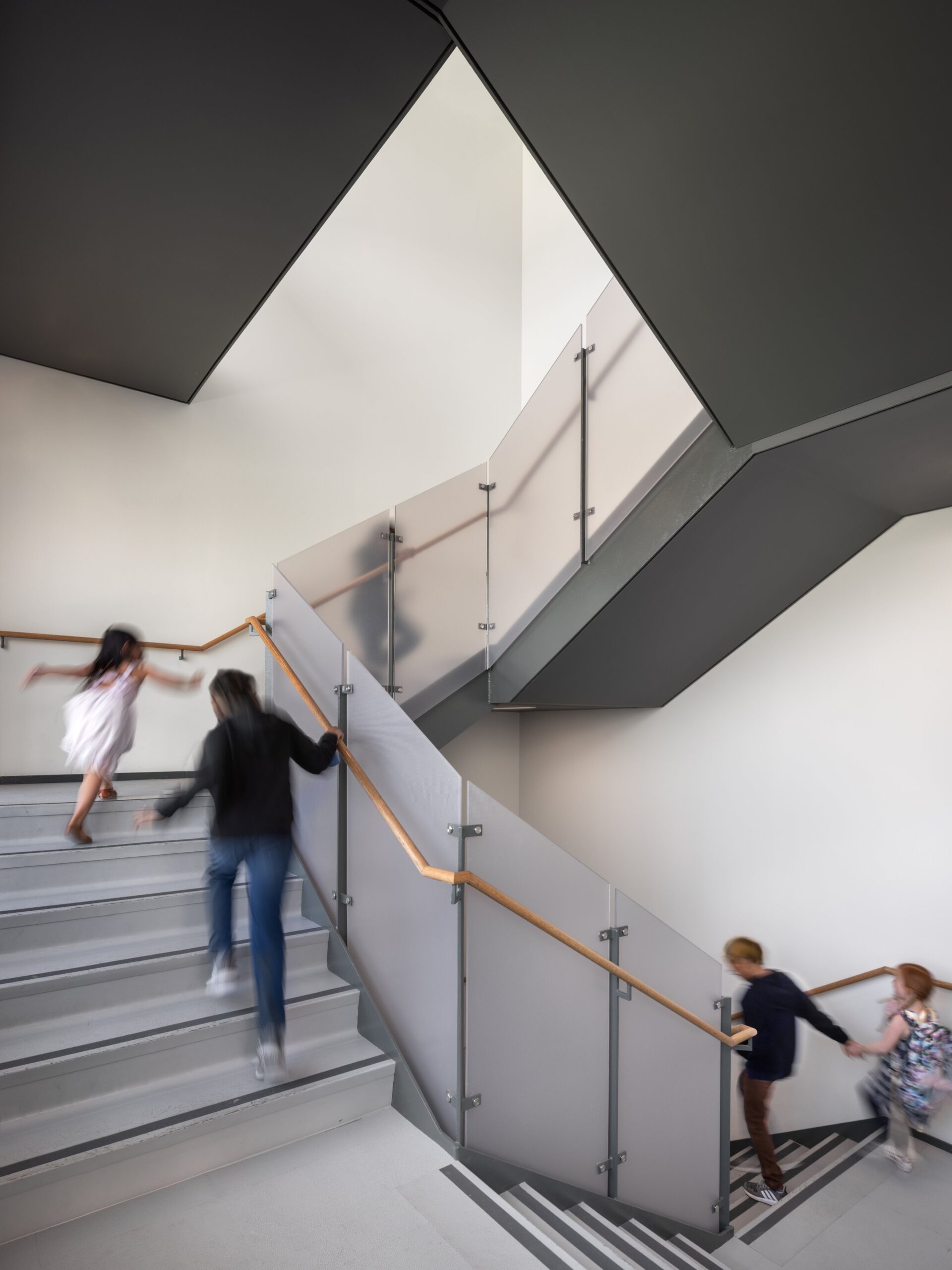

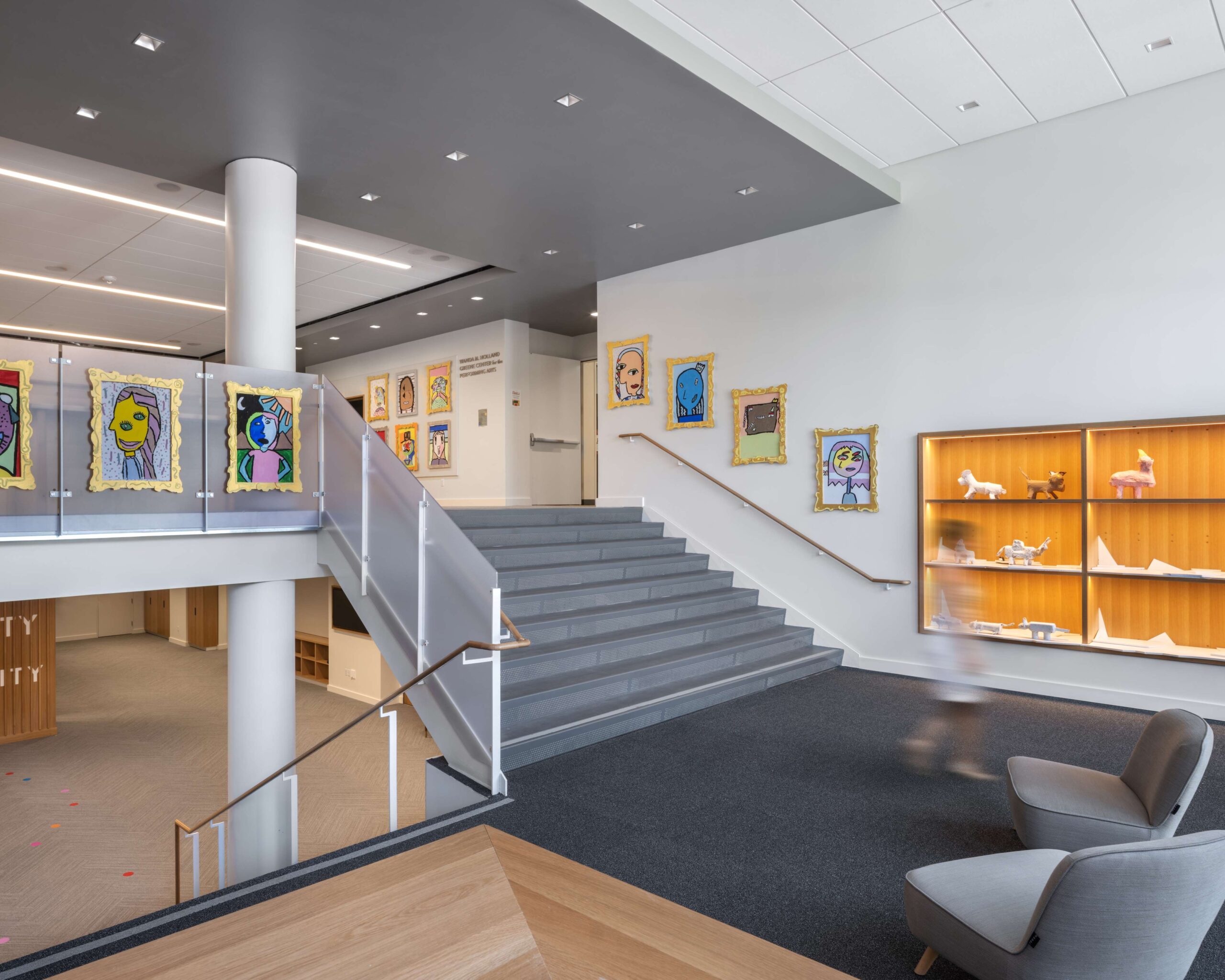

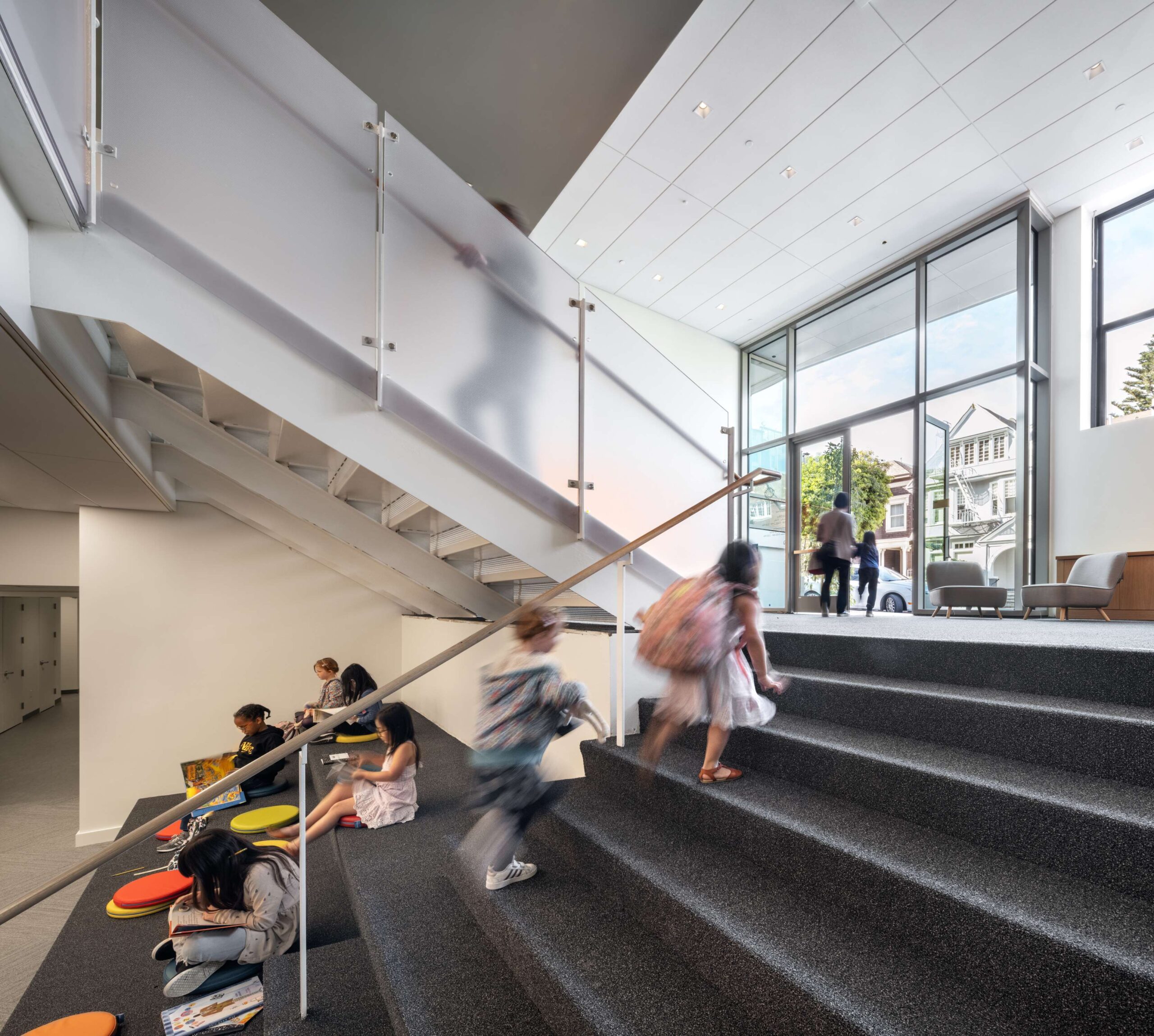

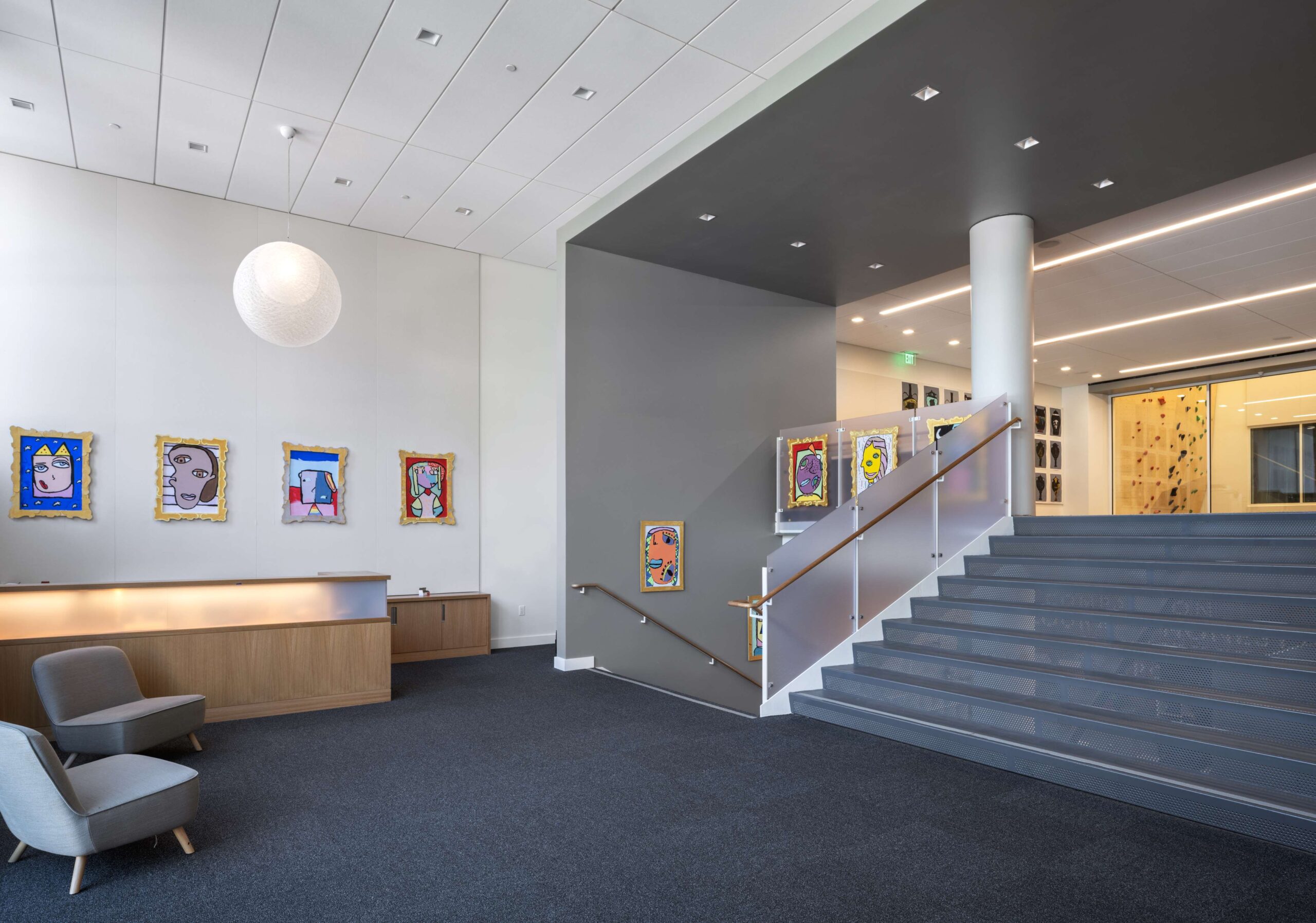

    The Middle Building is a part concrete and part steel-framed building from the 1970s and 80s. The existing exterior stair that sat centrally within the building was relocated to consolidate the two sides of the existing dining room. This move now allows for more students to dine in the space at the same time. For flexibility, a moveable partition was added to allow the space to be divided as needed for different events. A new, consolidated stair and elevator tower replaces the existing stand-alone ones from McKinne Hall and the Middle Building respectively. The circulation between the two buildings is now more clear and it also free up space for other programs in both buildings.

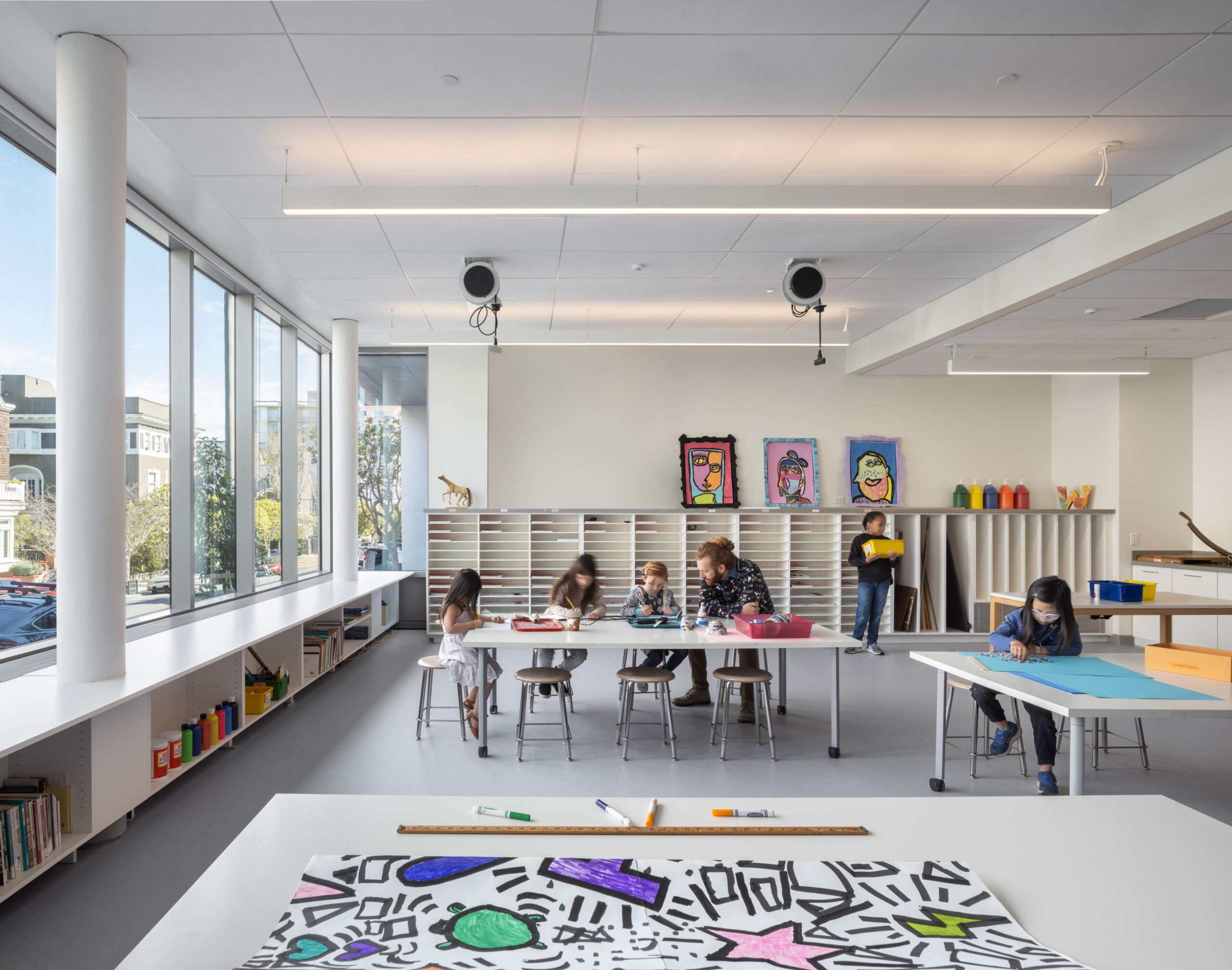

    For the historic Stanwood Hall, Mark Cavagnero Associates assisted with the transformation of the existing library into a combination library and maker space, dubbed the Riveter Lab. Flexible furniture, improved lighting, and additional project storage contributed to the functional success of this space.

    Location

    Recognition

    Awards

    Chicago Athenaeum American Architecture Award, Schools and Universities Category, 2023
    AIA San Francisco,
    Citation Award for Architecture, 2023
    Chicago Athenaeum Green Good Design Award, Green Architecture, 2023
    Architecture MasterPrize Awards, Restoration & Renovation, 2022
    World Architecture News, WAN Awards, Education – Nursery, primary and secondary schools – Silver, 2022
    BLT Awards, Educational, 2022
    International Design Awards, Architecture Categories – Institutional – Silver, 2022
