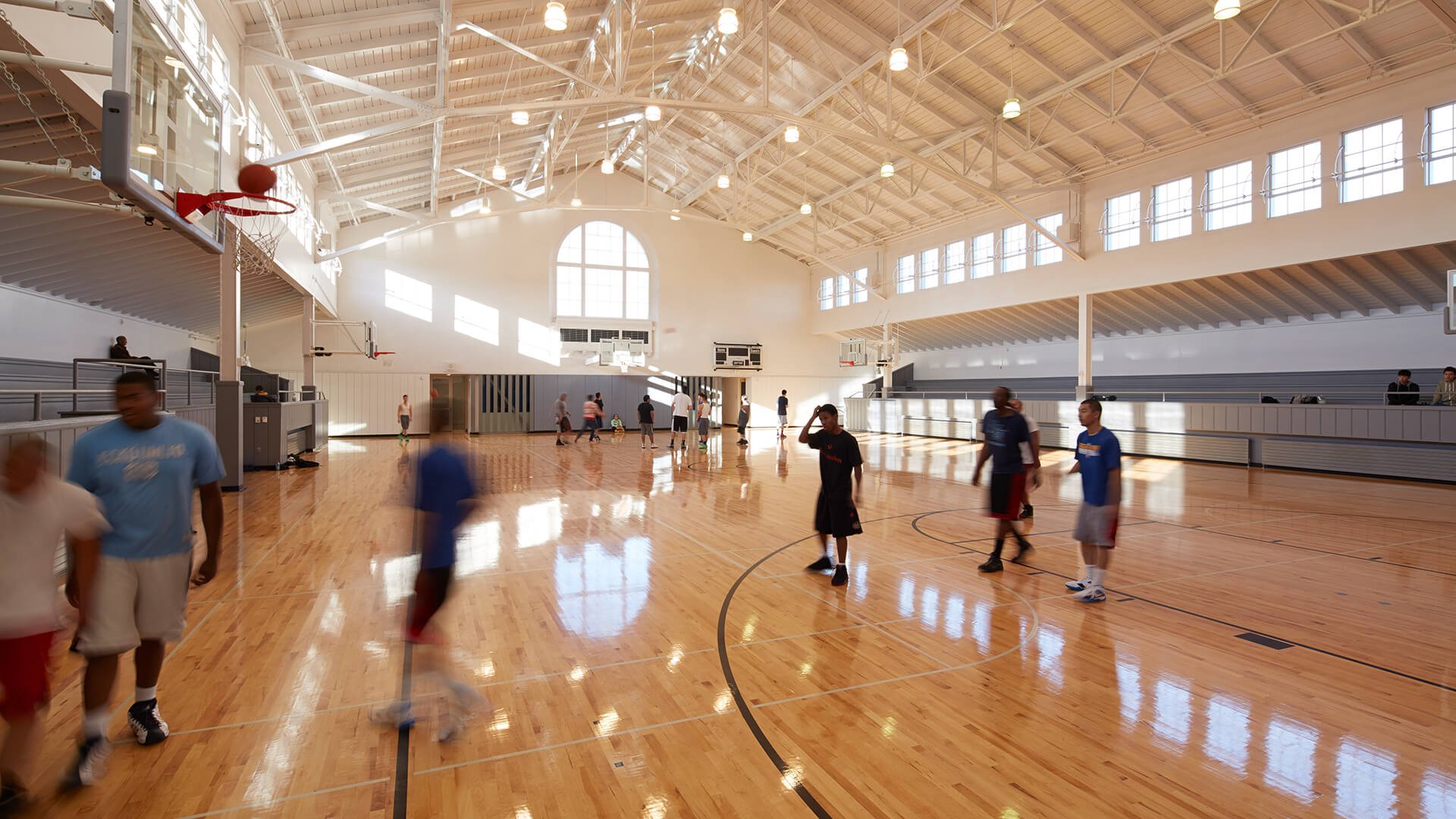

    Interior
    Learn More
    Interior
    Learn More
    Interior
    Learn More
    Landscape
    Learn More
    Exterior
    Learn More
    Exterior
    Learn More
    Exterior
    Learn More
    Site Plan
    Learn More
    Demolition Plan
    Learn More
    Floor Plan
    Learn More
    Long Section
    Learn More
    Cross Section
    Learn More
    • Photography
    • Site
    • Drawings

    Palega Recreation Center

    Status

    Completed, 2013

    Size

    25,000 SF

    Client

    City and County of San Francisco, San Francisco Recreation and Park Department

    Scope

    Addition, Renovation

    Project Team

    Mark Cavagnero
    John Fung
    Laura Blake
    Beth Morris
    Viral Vithalani
    Brandon Joo
    Olga Kozachek
    Frank Goetz

    Project Collaborators

    MEP Engineer: Timmons Design Engineers + HRA Engineers
    Structural Engineer: SOHA Engineers
    Civil Engineer: Telamon Engineering Consultants, Inc.
    Landscape: Department of Public Works + Adrienne Wong Associates
    Project Manager: San Francisco Recreation and Parks Department
    General Contractor: Arntz Builders
    Lighting Consultant: JS Nolan +Associates Lighting Design, LLC
    Acoustical Consultant: Smith, Fause & McDonald, Inc.
    LEED Consultant: Simon and Associates, Inc. / Thornton Tomasetti
    Historic Consultant: Page and Turnbull
    Specifications Consultant: Stansen Specifications
    Cost Estimation: AECOM (Formerly Davis Langdon)

    Special Features

    LEED Certification Gold

    Description

    Mark Cavagnero Associates was selected by The City of San Francisco Recreation and Parks Department to renovate and provide an addition to the existing Palega Recreation Center and surrounding five acre park located in the Portola neighborhood in San Francisco.

    Originally designed to be located in the middle of park the with its main gymnasium entries on the north side, and back logia entry leading to an outdoor pool, the pool was abandoned and the building was built along the south side of the park resulting in the back of the building fronting Felton Street.  Over the years the north entries were in-filled and converted to other uses and a side entry became the main public entry.  This entry is far from the street and difficult to find.

    To address the programmatic need for a clear entry, better visual and physical connection between the outdoor play area, and more space, the project includes an addition and adjoining outdoor play area located on the west side of the existing building. The addition canopy extends out to the Felton Street sidewalk to provide a clear and inviting public entry. The adjoining south facing lawn provides a place to meet and gather before or after using the park.  The addition itself opens both to the existing gym and the new adjoining play and picnic area and provides a strong visual and physical connection between the two which improves supervision, safety and a sense community.  The addition is a light weight steel and glass structure that, consistent with the Secretary of the Interiors Standards for the Treatment of Historic Structures, aims to be both deferential to and yet differentiated from the larger and heavier historic gymnasium building.

    The project is a LEED gold project.  Open space is maximized.  Permeable surfaces and bioswales reduce the quantity and improve the quality of storm water run-off.  Smart irrigation at the sports fields and native drought tolerant planting elsewhere reduce water consumption.  The building and addition have natural light, natural ventilation and water based heating to reduce energy consumption. Photovoltaic panels are provided for energy generation.  The existing building is retained, and regional, renewable and recycled materials are used throughout the building and site.

    Location

    Recognition

    Awards

    AIA San Francisco, Honor Award, 2013
